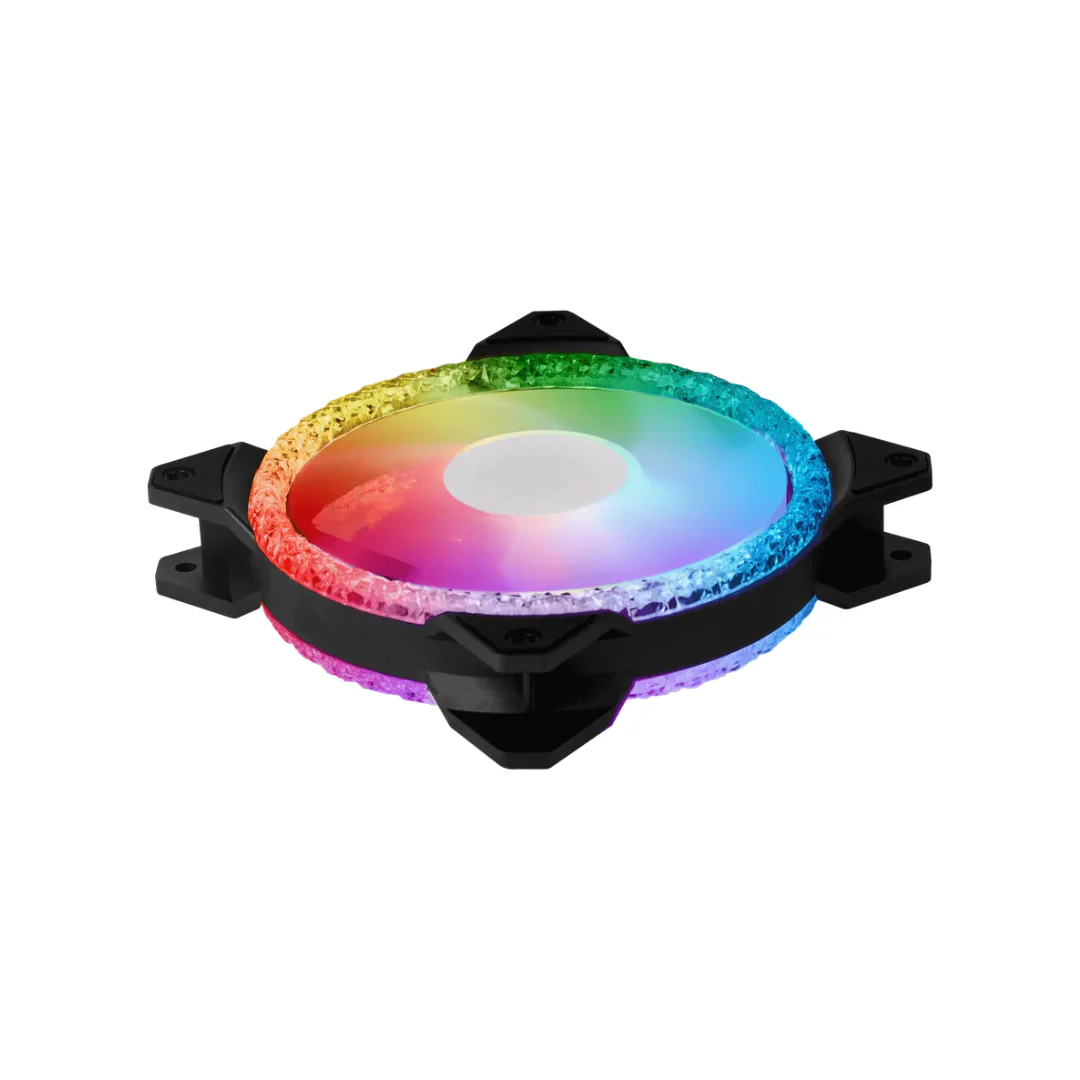

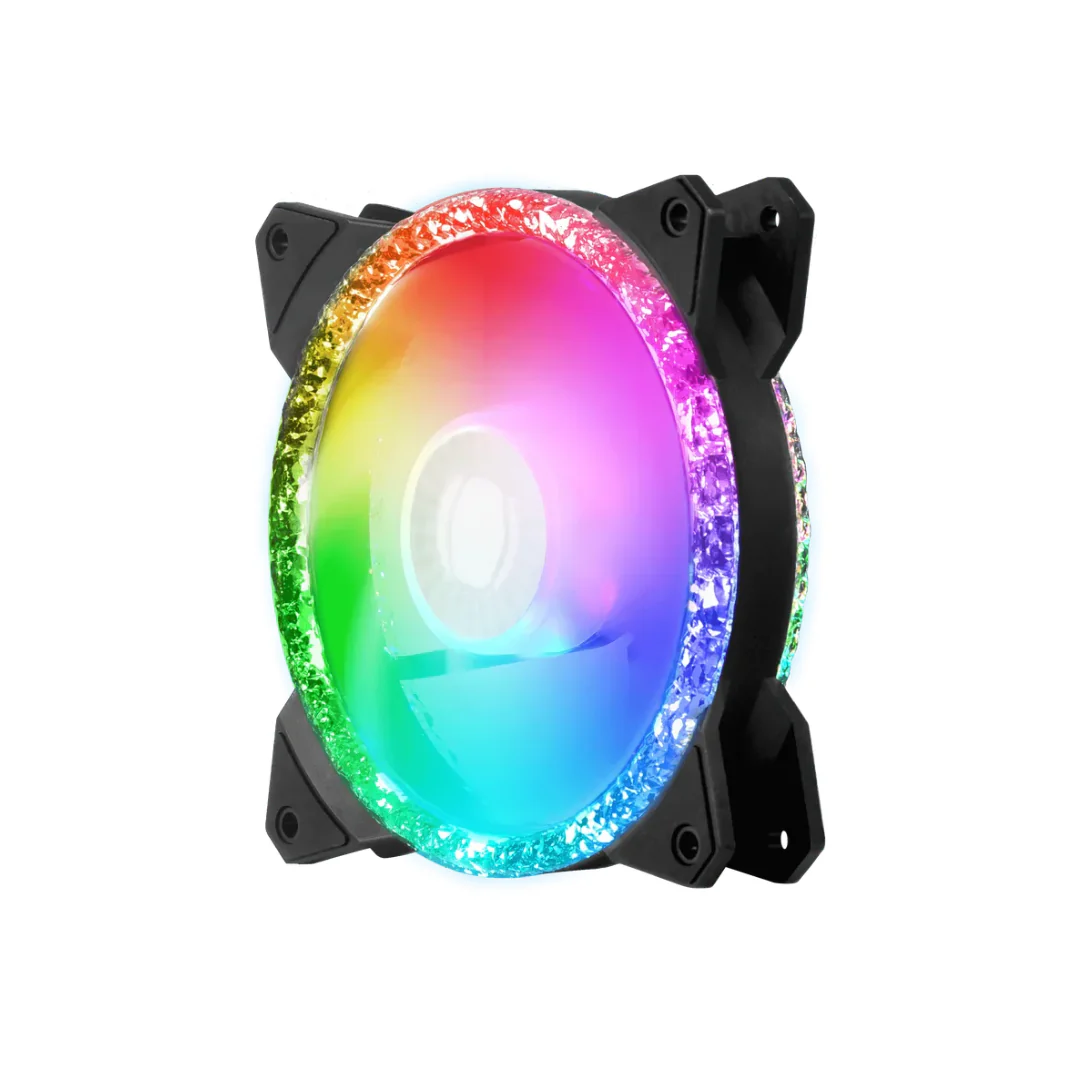

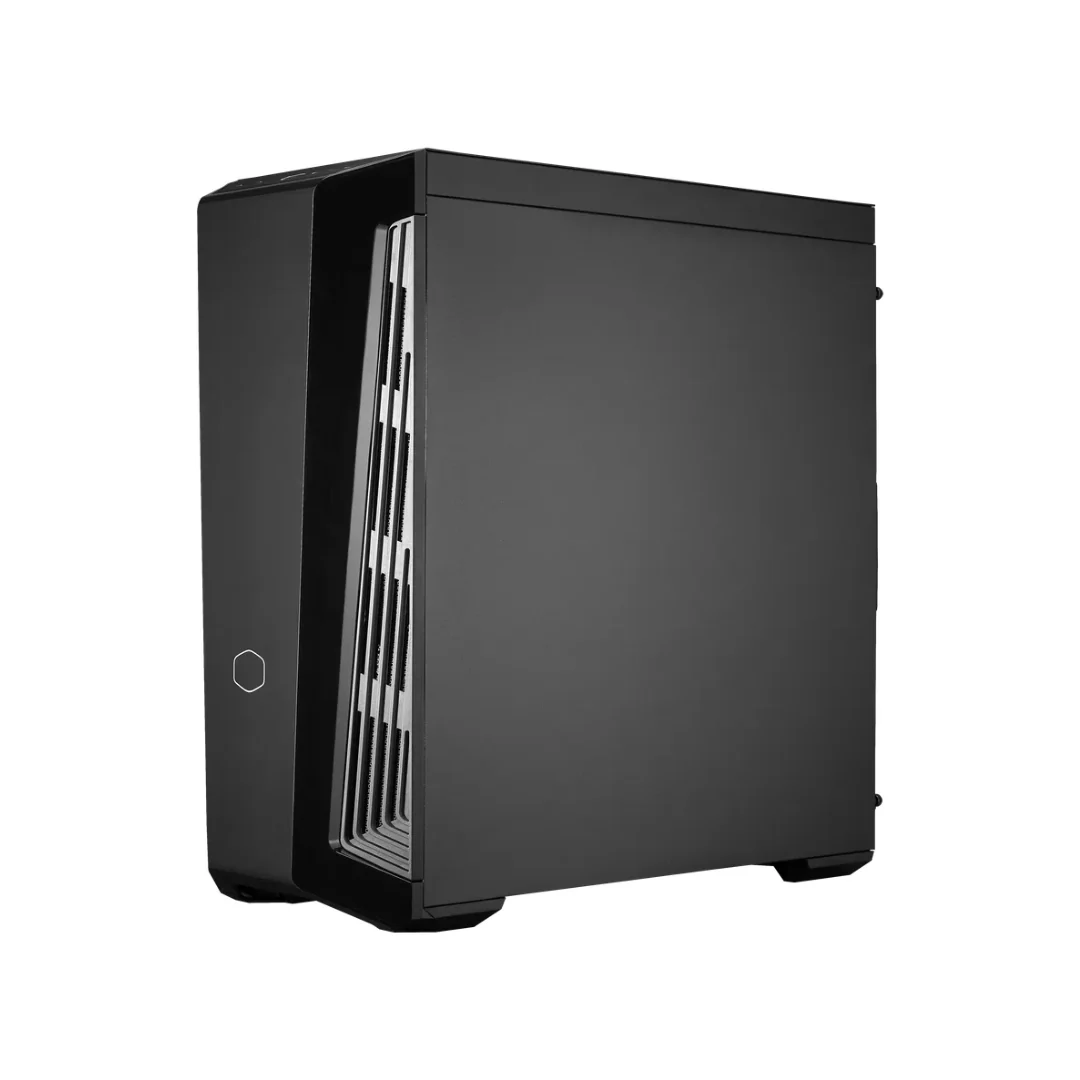

COOLER MASTER MB540 TG eATX 1X120mm MB540-KGNN-S00 (Free Cooler Master MF120 Prismatic ARGB 120mm)
- MODEL NUMBER MB540-KGNN-S00
- SERIES MasterBox Series
- SIZE Mid Tower
- AVAILABLE COLOR(S) Black
- MATERIALS Steel, Mesh, Plastic, Tempered Glass
- DIMENSIONS (L X W X H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
- VOLUME (EXLC. PROTRUSIONS) 51.87L
- MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
- EXPANSION SLOTS 7
- 5.25" DRIVE BAYS 0
- 2.5" / 3.5" DRIVE BAYS (COMBO) 2
- 2.5" DRIVE BAYS 4
- I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
- PRE-INSTALLED FANS - TOP N/A
- PRE-INSTALLED FANS - FRONT N/A
- PRE-INSTALLED FANS - REAR 1x 120mm 650~1800RPM SickleFlow PWM ARGB
- FAN SUPPORT - TOP 3x 120mm, 2x 140mm
- FAN SUPPORT - FRONT 3x 120mm, 2x 140mm
- FAN SUPPORT - REAR 1x 120mm
- RADIATOR SUPPORT - TOP 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
- RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT - REAR 120mm
- CLEARANCE - CPU COOLER 165mm/6.49"
- CLEARANCE - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
- CLEARANCE - GFX 410mm/16.1"
- DUST FILTERS Top, Front, Bottom
- POWER SUPPLY SUPPORT ATX
- MODEL NUMBER MB540-KGNN-S00
- SERIES MasterBox Series
- SIZE Mid Tower
- AVAILABLE COLOR(S) Black
- MATERIALS Steel, Mesh, Plastic, Tempered Glass
- DIMENSIONS (L X W X H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
- VOLUME (EXLC. PROTRUSIONS) 51.87L
- MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
- EXPANSION SLOTS 7
- 5.25" DRIVE BAYS 0
- 2.5" / 3.5" DRIVE BAYS (COMBO) 2
- 2.5" DRIVE BAYS 4
- I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
- PRE-INSTALLED FANS - TOP N/A
- PRE-INSTALLED FANS - FRONT N/A
- PRE-INSTALLED FANS - REAR 1x 120mm 650~1800RPM SickleFlow PWM ARGB
- FAN SUPPORT - TOP 3x 120mm, 2x 140mm
- FAN SUPPORT - FRONT 3x 120mm, 2x 140mm
- FAN SUPPORT - REAR 1x 120mm
- RADIATOR SUPPORT - TOP 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
- RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT - REAR 120mm
- CLEARANCE - CPU COOLER 165mm/6.49"
- CLEARANCE - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
- CLEARANCE - GFX 410mm/16.1"
- DUST FILTERS Top, Front, Bottom
- POWER SUPPLY SUPPORT ATX
$95.34
COOLER MASTER MB540 TG eATX 1X120mm MB540-KGNN-S00 (Free Cooler Master MF120 Prismatic ARGB 120mm)—
$95.34
Description
- MODEL NUMBER MB540-KGNN-S00
- SERIES MasterBox Series
- SIZE Mid Tower
- AVAILABLE COLOR(S) Black
- MATERIALS Steel, Mesh, Plastic, Tempered Glass
- DIMENSIONS (L X W X H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
- VOLUME (EXLC. PROTRUSIONS) 51.87L
- MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
- EXPANSION SLOTS 7
- 5.25" DRIVE BAYS 0
- 2.5" / 3.5" DRIVE BAYS (COMBO) 2
- 2.5" DRIVE BAYS 4
- I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
- PRE-INSTALLED FANS - TOP N/A
- PRE-INSTALLED FANS - FRONT N/A
- PRE-INSTALLED FANS - REAR 1x 120mm 650~1800RPM SickleFlow PWM ARGB
- FAN SUPPORT - TOP 3x 120mm, 2x 140mm
- FAN SUPPORT - FRONT 3x 120mm, 2x 140mm
- FAN SUPPORT - REAR 1x 120mm
- RADIATOR SUPPORT - TOP 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
- RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT - REAR 120mm
- CLEARANCE - CPU COOLER 165mm/6.49"
- CLEARANCE - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
- CLEARANCE - GFX 410mm/16.1"
- DUST FILTERS Top, Front, Bottom
- POWER SUPPLY SUPPORT ATX
